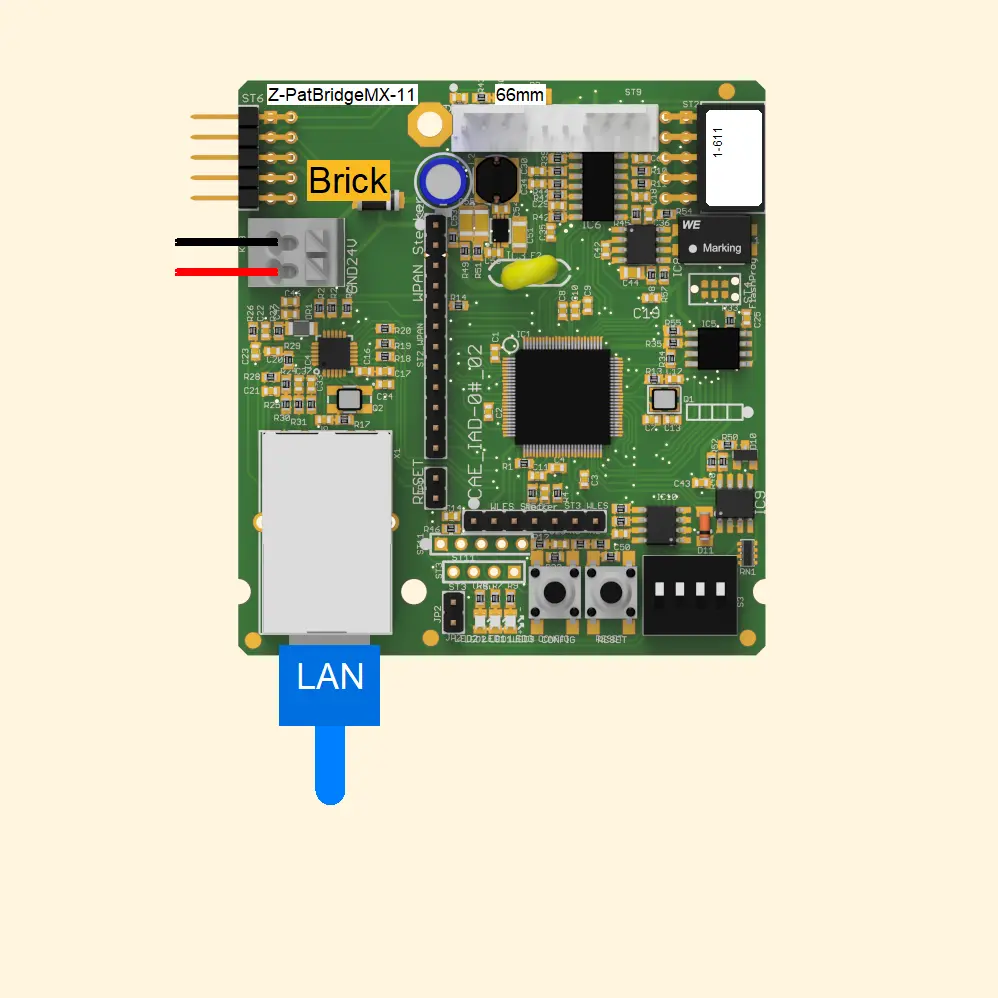

Koppel-Brick, von Remote-Bus auf Local-Bus
CAE_Z-PatBridgeMX-11
€49,00 excl. VAT, excl. shipping
| Quantity | Discount | Price |
|---|---|---|
| 1 - 4 | — | €49,00 |
| 5 - 9 | 11 % | €43,61 |
| 10 - 49 | 17 % | €40,67 |
| 50 - 99 | 23 % | €37,73 |
| 100 - 249 | 32 % | €33,32 |
| 250 - 499 | 35 % | €31,85 |
| 500+ | 39 % | €29,89 |
Beschreibung
Bus-Koppler zum Aufbau eines lokalen brickBUS Knotens
Ankopplung möglich via: LAN, RSxxx, CAN
Versorgung: 24V dc, die brickBUS-Versorung wird intern erzeugt
Technical specifications
Features:
| Category | Feature | Quant. | Details |
|---|---|---|---|
| Control unit | Processor | 1 | 32Bit, 80 MHz 512kB-Flash, 128KB-RAM, 8kB-EEPROM |
| Com. service | PC-Visualisierung | 1 | via LAN |
| Interface | CAN | 1 | not isolated, ESD protected |
| Interface | LAN | 1 | Ethernet IEEE 802.3 |
| Interface | RS232-TTL | 1 | not isolated, not protected |
| Interface | RS458 | 1 | not isolated, ESD protected |
Processors/controllers:
| Usage | Processor | Memory | Details |
|---|---|---|---|
| Control unit | 32Bit, 80MHz | 32Bit, 80 MHz 512kB-Flash, 128KB-RAM, 8kB-EEPROM |
Data interfaces:
| Interface | Bit rate | electrical connection | Remark |
|---|---|---|---|
| Brick.RS485-RS232-TTL | max. 115kbps | 3-wire | not isolated, not protected |
| Brick.RS485-RS485 | max. 250kbps | two wire | not isolated, ESD protected |
| Brick.RS485-CAN | max. 1Mbps, CAN2.0B | two wire | not isolated, ESD protected |
| Brick.X02-brickBUS | max. 1Mbps | brickBUS, TTL 3.3V (intern) | IO-module interface |
| Brick.X03-Ethernet | 10/100Mbps, IEEE 802.3 | RJ45, TIA-568A | 10BASE-T/100BASE-T |
Downloads
Documents:
3D-View
