I/O Brick_Testing:
4x Digital-Outputs
high side switch, low side switch,
pull-up, 10V-24V nom. Abs. max = 30V
4x Digital-Inputs, 0-24V,
programmable threshold, OVP 50V
duty cycle measurement
CAE_T-4Di4Do-01
€66,00 excl. VAT, excl. shipping
| Quantity | Discount | Price |
|---|---|---|
| 1 - 4 | — | €66,00 |
| 5 - 9 | 11 % | €58,74 |
| 10 - 49 | 17 % | €54,78 |
| 50 - 99 | 23 % | €50,82 |
| 100 - 249 | 32 % | €44,88 |
| 250 - 499 | 35 % | €42,90 |
| 500+ | 39 % | €40,26 |
Beschreibung
ID: 6-101

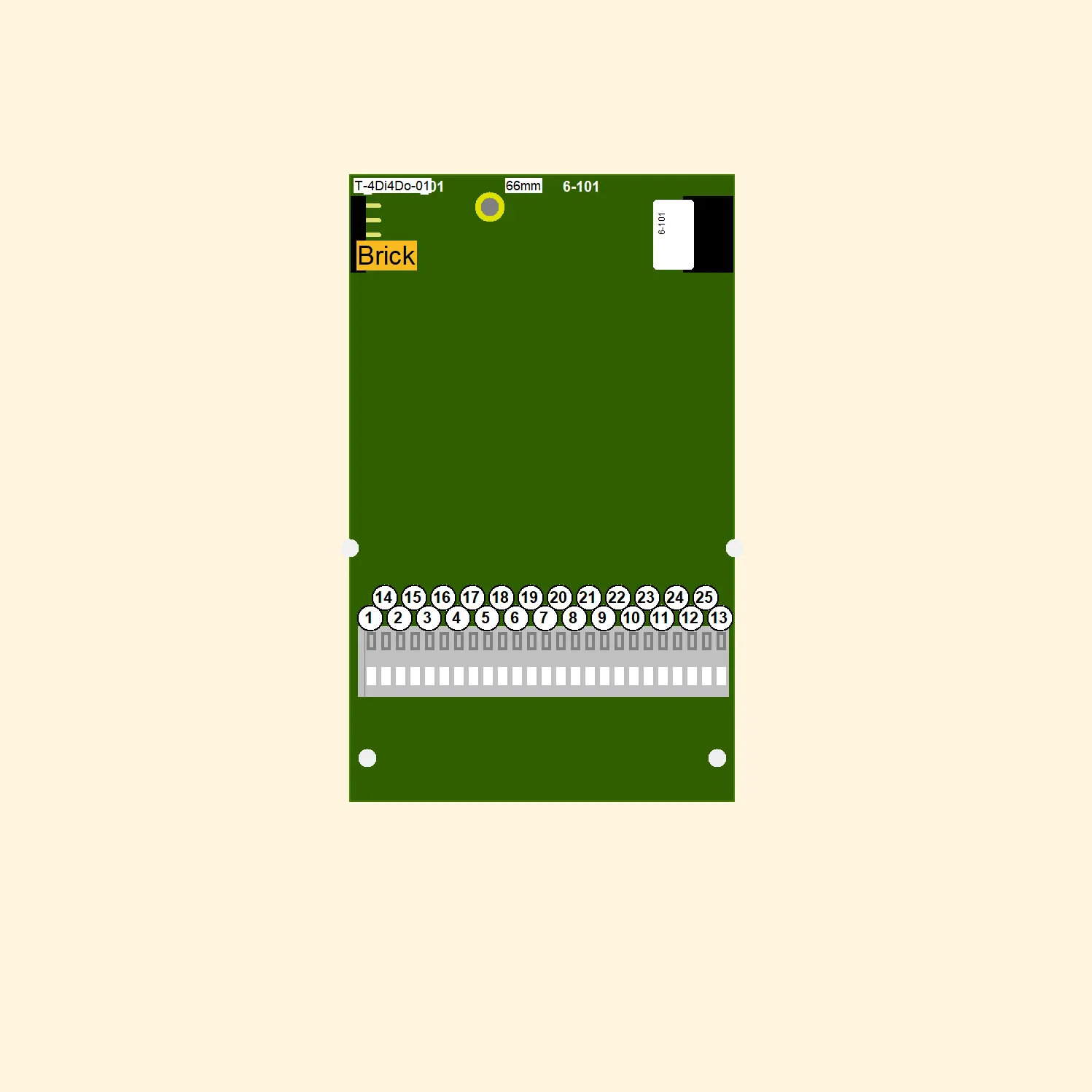

Order No.: CAE_T-4Di4Do-01
Terminal: 25 Pin Sub-D (m)
Size: 6 eT (66mm x 107,5mm)
BBFCP: 3-1-1
The Module includes four digital outputs, adjustable as low side switch or high side switch, optional with pull-up.
The digital inputs designed for nominal 0-24V. The threshold of all inputs together can programmed from about 1V to 24V.
Technical specifications
More information upon request
support@embrick.de
Downloads
Documents:
3D-View
