I/O Brick_Testing:
4x Analog-Inputs (using ADS8684)
16 Bit, single/diff. input, filtered
Full-Range: ±10.24V
others on request
4x Analog-Outputs (using DAC7565)
12 Bit, Full Range: 36V, up to ±100mA
CAE_T-4Ai4Ao-01
€257,00 excl. VAT, excl. shipping
| Quantity | Discount | Price |
|---|---|---|
| 1 - 4 | — | €257,00 |
| 5 - 9 | 11 % | €228,73 |
| 10 - 49 | 17 % | €213,31 |
| 50 - 99 | 23 % | €197,89 |
| 100 - 249 | 32 % | €174,76 |
| 250 - 499 | 35 % | €167,05 |
| 500+ | 39 % | €156,77 |
Beschreibung

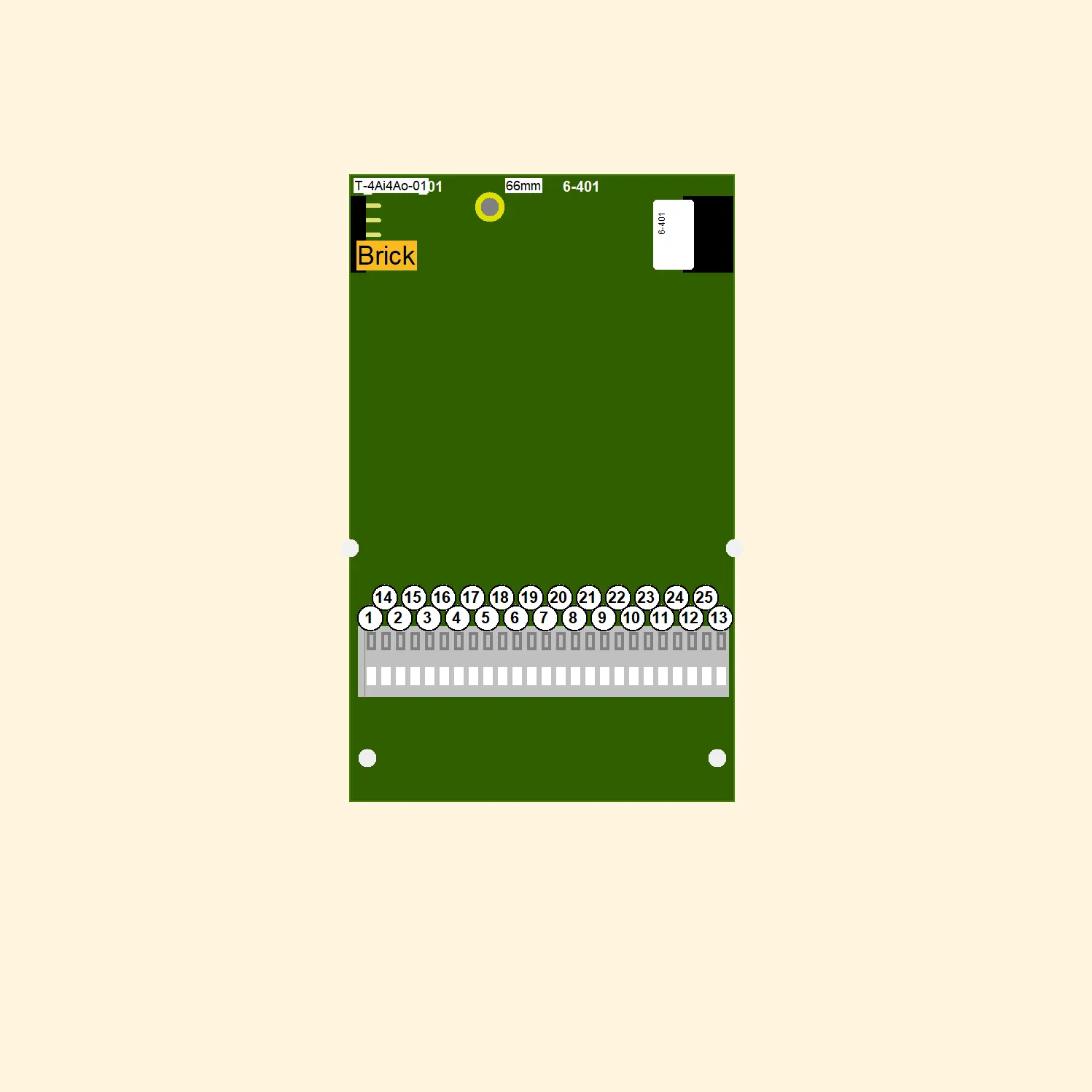

ID: 6-401
Order No.: CAE_T-4Ai4Ao-01
Terminal: 25 Pin Sub-D (m)
Size: 6 eT (66mm x 107,5mm)
BBFCP: 3-1-1
The T-4Ai4Ao-0# are high performance analog interfaces for testing and accurate measurement applications. They contain a separate processor to realize a pre-evaluation or an arbitrary gen-eration. Each analog output can deliver up to 100mA, may be there is an external cooling sys-tem required.
The IOs, can be adapted via Sub-D connector or push-in clamps. Key features are:
AI:
▪ 16 Bit ADC, RI = 1MOhm, <10 kS/s
▪ full range max Value ±10,24V
▪ no separate active components in the signal path (low noise/errors)
AO:
▪ 12 Bit DAC, UOut <36V (ext. supply), slew-rate 5V/μs, <10 kS/s
▪ IOut < 100mA, Push-Pull (with external negative supply)
Technical specifications
More information upon request
