I/O Brick_Process-Control:
1x LF-Input, conductive, 2-wire
1x Temperature, PT100, 2-wire
1x Analog Output, 0..20mA
1x Analog Input, 0..20mA, 2/3-wire
1x Pulse-In-/Output, n-switch, 2/3-wire
can also be used as a Digital-Input
CAE_P-LfTmpAoDAioImp-03
€52,00 excl. VAT, excl. shipping
| Quantity | Discount | Price |
|---|---|---|
| 1 - 4 | — | €52,00 |
| 5 - 9 | 11 % | €46,28 |
| 10 - 49 | 17 % | €43,16 |
| 50 - 99 | 23 % | €40,04 |
| 100 - 249 | 32 % | €35,36 |
| 250 - 499 | 35 % | €33,80 |
| 500+ | 39 % | €31,72 |
Beschreibung
ID: 5-513
Order No.: CAE_P-LfTmpAoDAioImp-03
Terminal: push-in (for ≤ 0.5mm²)
Size: 4 eU (44mm x 72mm)
BBFCP: 1-1-1
Weight: 40g

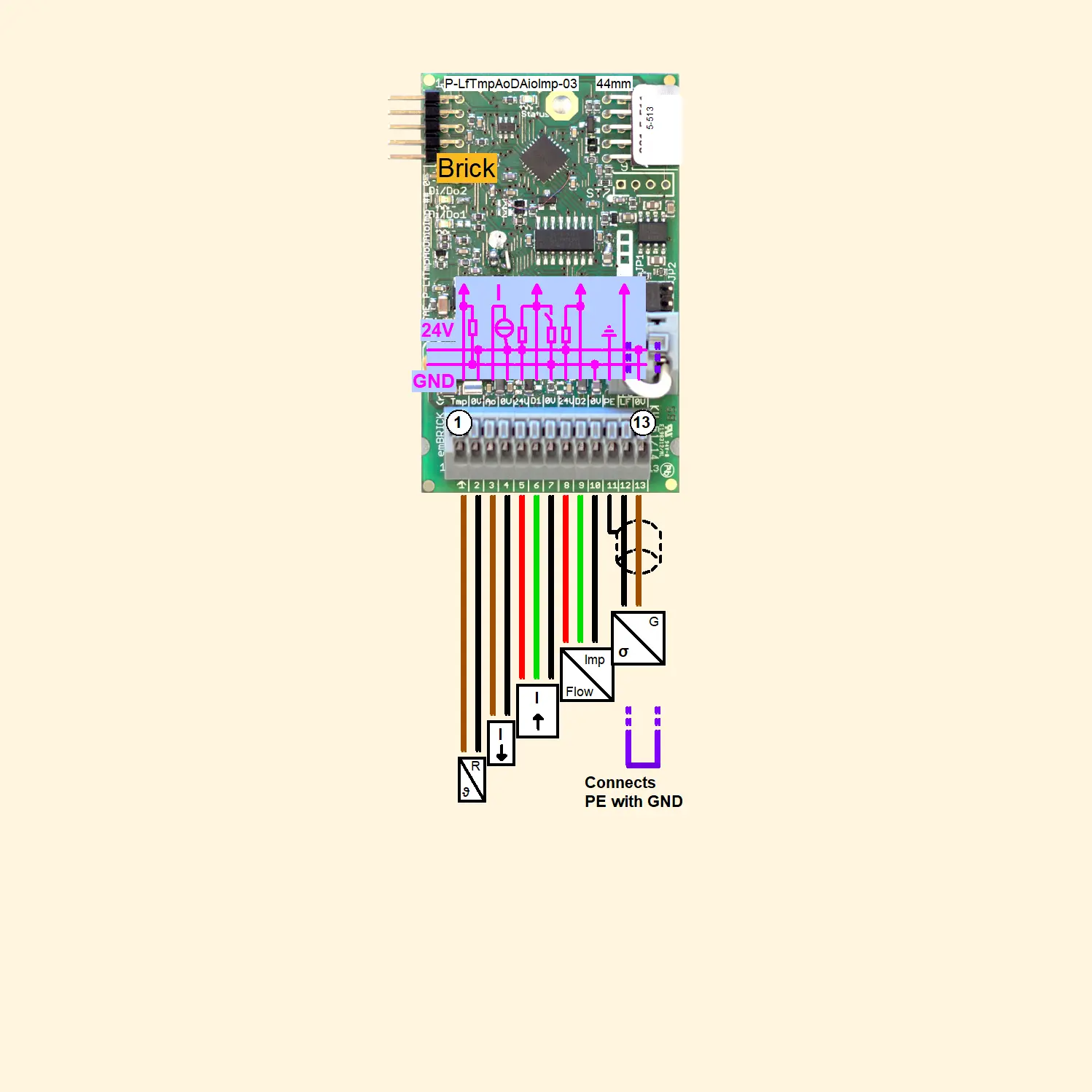

This module contains all IOs for a typical conductivity measurement with a range of 1 … 4000μS/cm (configurable). It supports the common cell constants of k = 0.01… 1.0 (configurable). An integrated temperature input (PT100) supplies the necessary temperature compensation.
A special pulse input allows the direct adaption of a hall or reed-contact flow and volume sensor from 0.01 up to 250Hz.
Additionally one universal analog current (0..20mA) input and one output (0..20mA) can be used for other analog sensors/actors.
Furthermore a semiconductor pulse output is present to control e.g. dosing pumps.
Technical specifications
Features:
| Category | Feature | Quant. | Details |
|---|---|---|---|
| In-/Output | Pulse In-/Output | 1 | n/p-switch, 2/3-wire, usable as in-/output |
| Input | Analog input | 1 | 0/4 … 20mA, 2/3-wire |
| Input | Conductivity measure input | 1 | conductive measuring cell, 2-wire |
| Input | Temperature measure input | 1 | Temperature input, PT100, 0…100°C |
| Output | Analog output | 1 | 0/4 … 20mA |
