I/O Brick_Process-Control:
1x LF-Input, conductive
1x Temperature, KTY2k, -10..50°C
2x Analog Input, 0/4..20mA
2x Pulse-In, pnp, can also be used as a Digital-Input
1x Analog Output, 0-20mA
CAE_P-LfTmp2Pi2AiAo-03
€56,00 excl. VAT, excl. shipping
Nicht vorrätig
Nicht vorrätig
Beschreibung
ID: 5-518
Order No.: CAE_P-LfTmp2Pi2AiAo-03
Terminal: push-in (for < 1.5mm²)
Size: 5 eU (55mm x 72mm)
BBFCP: 1-1-1
Weight: 60g

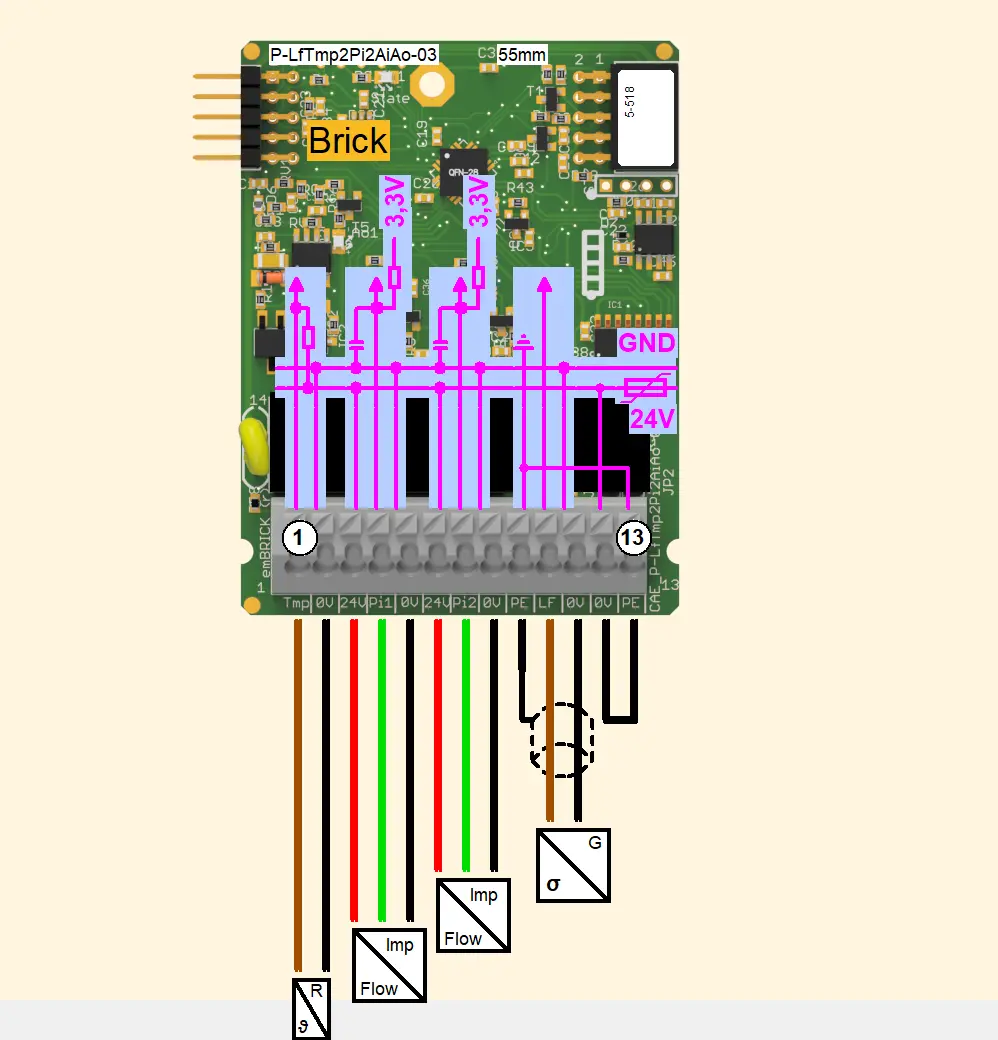

This module contains all IOs for a typical conductivity mesurement with a range of 1 …4000µS/cm (configurable). It supports the common cell constants of k = 0.01… 1.0 (configurable). An integrated temperature input (for KTY2k, -10..50°C) supplies the necessary temperature compensation.
The two special pnp pulse input allows the direct adaption of a hall or reed-contact flow and volume sensor from 0.01 up to 250Hz. Additionaly two analog current (0/4..20mA) inputs and one analog current (0..20mA) output can be used for other analog sensors/actors.
Technical specifications
Features:
| Category | Feature | Quant. | Details |
|---|---|---|---|
| Input | Analog input | 2 | 0/4 … 20mA, 2/3-wire |
| Input | Conductivity measure input | 1 | conductive measuring cell, 2-wire |
| Input | Pulse Input | 2 | NPN sensor, 2/3-wire |
| Input | Temperature measure input | 1 | Temperature input, KTY81-2k, 0…110°C |
| Output | Analog output | 1 | 0/4 … 20mA |
Downloads
Documents:
3D-View
