I/O Brick_Process-Control:
2x Relay-Output, NO, supply switching
2x Relay-Output, CO, supply switching
2x Relay-Output, CO, potential free
5x Digital-Inputs, 2-wire, common gnd
1x AC-Current Input, 2/20 Ap
CAE_P-6Rel5DiPow-01
€145,00 excl. VAT, excl. shipping
| Quantity | Discount | Price |
|---|---|---|
| 1 - 4 | — | €145,00 |
| 5 - 9 | 11 % | €129,05 |
| 10 - 49 | 17 % | €120,35 |
| 50 - 99 | 23 % | €111,65 |
| 100 - 249 | 32 % | €98,60 |
| 250 - 499 | 35 % | €94,25 |
| 500+ | 39 % | €88,45 |
Beschreibung
ID: 5-302
Order No.: CAE_P-6Rel5DiPow-01
Terminal: push-in (≤ 0.5mm²) & screw-lift (0,14-1,5mm²)
Size: 10 eU (110mm x 72mm)
BBFCP: 1-1-1
Weight: 130g

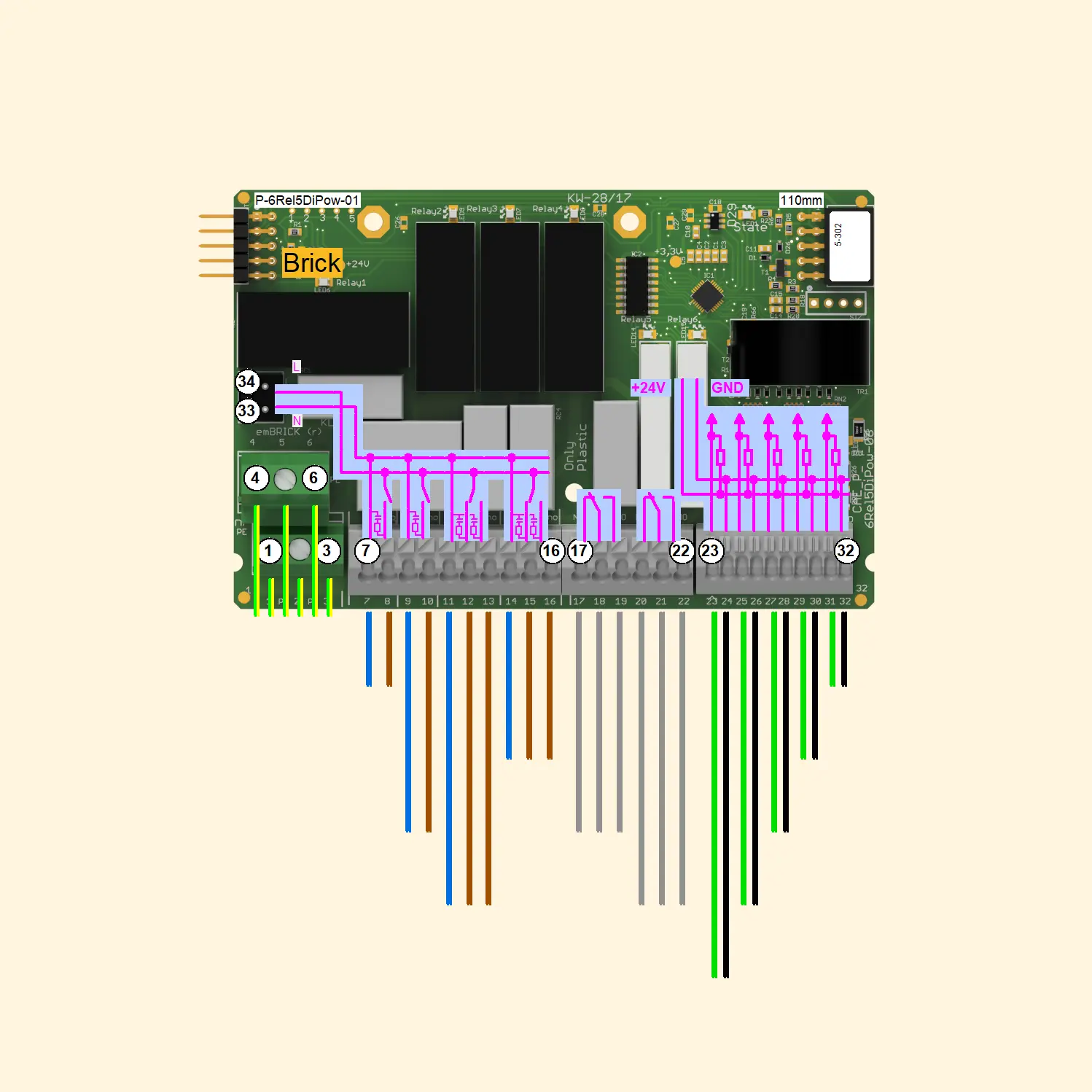

The module includes 6 digital relay outputs, 5 n-switching inputs and 1 inductive AC-current sensor. The module has two potential free change-over relays which can switch a continouse current of 4A. Four other relays are able to supply up to 230V. 2 of these are closing and the other 2 are switch-over. Each of the supplying relay can switch up to 5A. The max. permant sum current over the supply outputs is 5A.
Technical specifications
Features:
| Category | Feature | Quant. | Details |
|---|---|---|---|
| Input | Digital input | 5 | for ext. contact, 2 wire, common GND |
| Input | Load current measurement, via transformer | 1 | 0 … 2/20Ap, selectable |
| Output | Relay output, CO | 2 | isolated, uniploar |
| Output | Relay output, CO | 2 | supply switching |
| Output | Relay output, NO | 2 | supply switching |
Supplies (fed in from external):
| Description | Brick.Output supply |
|---|---|
| Information | Output Supply from extern |
| Voltage | 230V AC |
| max. Current | 5A AC/DC |
| Inactive Current | < 1mA |
| Frequency | |
| Remark |
