I/O Brick_Process-Control:
2x Relay-Output, CO, potential free
6x digital-Inputs, n-switch, 2-wire
CAE_P-2Rel6Di-01
€67,00 excl. VAT, excl. shipping
| Quantity | Discount | Price |
|---|---|---|
| 1 - 4 | — | €67,00 |
| 5 - 9 | 11 % | €59,63 |
| 10 - 49 | 17 % | €55,61 |
| 50 - 99 | 23 % | €51,59 |
| 100 - 249 | 32 % | €45,56 |
| 250 - 499 | 35 % | €43,55 |
| 500+ | 39 % | €40,87 |
Beschreibung
ID: 5-122
Order No.: CAE_P-2Rel6Di-01
Terminal: push-in (for ≤ 0.5mm²)
Size: 6 eU (66mm x 72mm)
BBFCP: 1-1-1
Weight: 50g
The Module includes two potential free relays each for max. 5A and six digital inputs. These inputs need an external closing to ground.
Technical specifications
Features:
| Category | Feature | Quant. | Details |
|---|---|---|---|
| Digital input | 6 | n-switching, 2-wire | |
| Relay, change over contact, isolated | 2 | 230V, permanent load 5A |
Downloads
Documents:

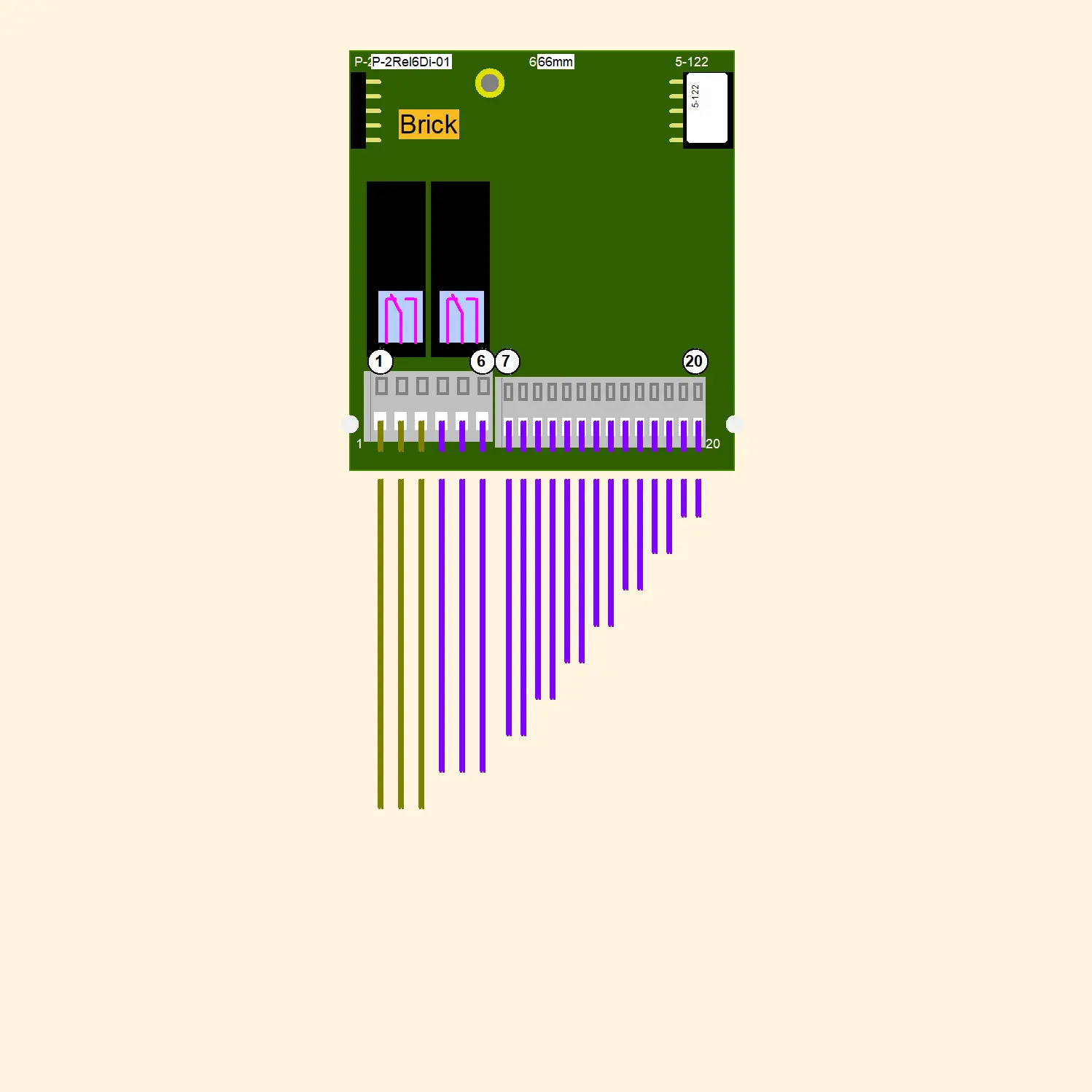

3D-View
More information upon request
