I/O Brick_Process-Control:
2x Relay-Output, CO, potential free
4x Digital-Inputs, n-switch, 2-wire
2x Analog-Inputs, 20mA, 2/3wire
CAE_P-2Rel4Di2Ai-02
€70,00 excl. VAT, excl. shipping
| Quantity | Discount | Price |
|---|---|---|
| 1 - 4 | — | €70,00 |
| 5 - 9 | 11 % | €62,30 |
| 10 - 49 | 17 % | €58,10 |
| 50 - 99 | 23 % | €53,90 |
| 100 - 249 | 32 % | €47,60 |
| 250 - 499 | 35 % | €45,50 |
| 500+ | 39 % | €42,70 |
Beschreibung
ID: 5-132
Order No.: CAE_P-2Rel4Di2Ai-02
Terminal: push-in (for ≤ 0.5mm²)
Size: 6 eU (66mm x 72mm)
BBFCP: 1-1-1
Weight: 50g

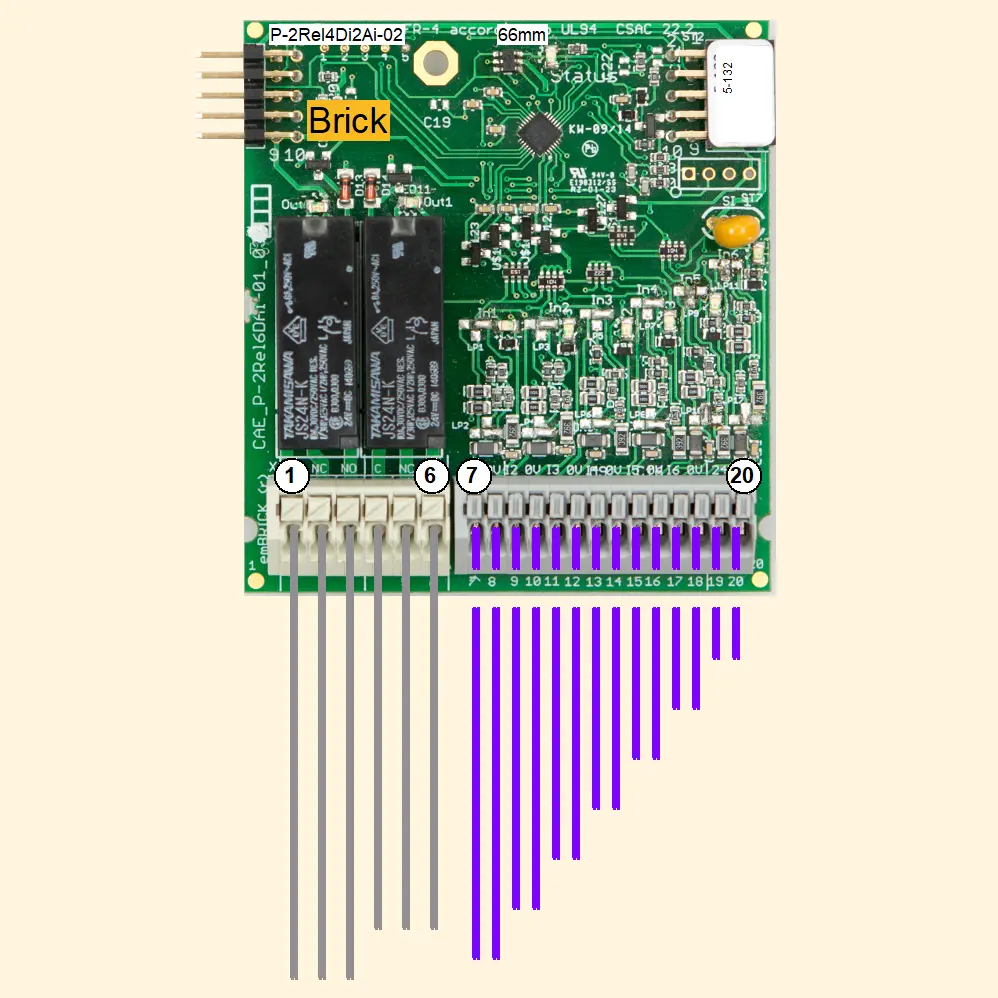

The Module includes two potential free relays, four digital inputs and 2 analog inputs with power supply.
The digital inputs are designed for an external switch / open collector to ground. The analog inputs are current (0..20mA) inputs.
Technical specifications
Features:
| Category | Feature | Quant. | Details |
|---|---|---|---|
| Input | Analog input | 2 | 0/4 … 20mA, 2/3-wire |
| Input | Digital input | 4 | n-switching, 2-wire |
| Output | Relay, change over contact, isolated | 2 | 230V, permanent load 5A |
Downloads
Documents:
3D-View
More information upon request
