I/O Brick_Process-Control:
1x Relay-Output, NO, supply switching
1x Relay-Output, CO, supply switching
2x Relay-Output, NO, supply switching
1x AC-Current Input,10 Ap
CAE_P-112RelPow-01
€86,00 excl. VAT, excl. shipping
| Quantity | Discount | Price |
|---|---|---|
| 1 - 4 | — | €86,00 |
| 5 - 9 | 11 % | €76,54 |
| 10 - 49 | 17 % | €71,38 |
| 50 - 99 | 23 % | €66,22 |
| 100 - 249 | 32 % | €58,48 |
| 250 - 499 | 35 % | €55,90 |
| 500+ | 39 % | €52,46 |
Beschreibung
ID: 5-102
Order No.: CAE_P-112RelPow-01
Terminal: push-in (for ≤ 0.5mm²)
Size: 6 eU (66mm x 72mm)
BBFCP: 1-1-1
Weight: 100g

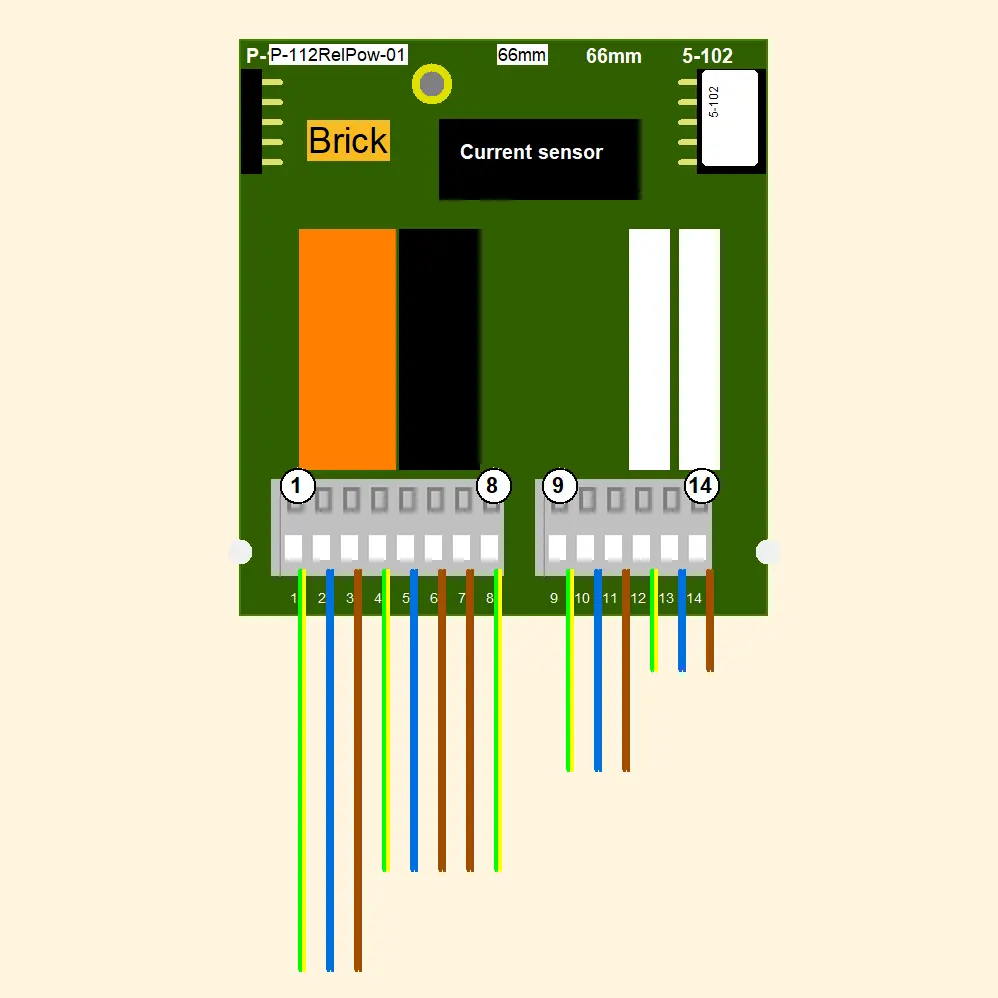

This module includes four relays with RC-Part and one independent current measurement. Relay 1 consists of a closing contact and can handle a permanent/pulse current of 5/16A.
Relay 2 is a switchover contact and handles a permanent/pulse current of 5/8A.
Relay 3 and 4 are closing contacts and handle a permanent/pulse current of 4/6A.
The current measurement is developed up to 10A eff.
Technical specifications
Features:
| Category | Feature | Quant. | Details |
|---|---|---|---|
| Current Sensor | 1 | up to 10A eff. | |
| Relay, change over contact, power switching 230V | 1 | 230V, permanent load 5A | |
| Relay, normally open contact, power switching 230V | 1 | 230V, permanent load 5A | |
| Relay, normally open contact, power switching 230V | 2 | 230V, permanent load 4A |
Downloads
Documents:
3D-View
More information upon request
