I/O Brick_General-Purpose:
6x Analog Input, 4..20mA, 2/3-wire
1x Analog Output, 0..10V, 2-wire
1x Analog Output, 0..20mA, 2-wire
2x Analog Input, 0..40V, 2/3-wire
4x Temperature, PT1000, 2-wire
CAE_G-6Ai2Ao2Ai4Tmp-02-RB
€103,00 excl. VAT, excl. shipping
| Quantity | Discount | Price |
|---|---|---|
| 1 - 4 | — | €103,00 |
| 5 - 9 | 11 % | €91,67 |
| 10 - 49 | 17 % | €85,49 |
| 50 - 99 | 23 % | €79,31 |
| 100 - 249 | 32 % | €70,04 |
| 250 - 499 | 35 % | €66,95 |
| 500+ | 39 % | €62,83 |
Beschreibung
ID: 2-484
Order No.: CAE_6Ai2Ao2Ai4Tmp-02 RB
Terminal: push-in (for ≤ 1.5mm²)
Size: 72 x 90 (96) mm
BBFCP: 2-1-1
Weight: 150g
This brick offers an I/O-mix of 6 analog current inputs, 1 voltage (0..10V) and 1 current (0..20mA) output. Moreover 2 analog voltage inputs and 4 temperature inputs.
It is enclosed in a rail box.
Technical specifications
Features:
| Category | Feature | Quant. | Details |
|---|---|---|---|
| Analog input | 2 | 0 … 40V, 2/3-wire | |
| Analog input | 6 | 0/4 … 20mA, 2/3-wire | |
| Analog output | 2 | 0 … 20mA, 0 … 10V, 2/3-wire | |
| Temperature | 4 | PT1000, -50…350°C |
Downloads
Documents:

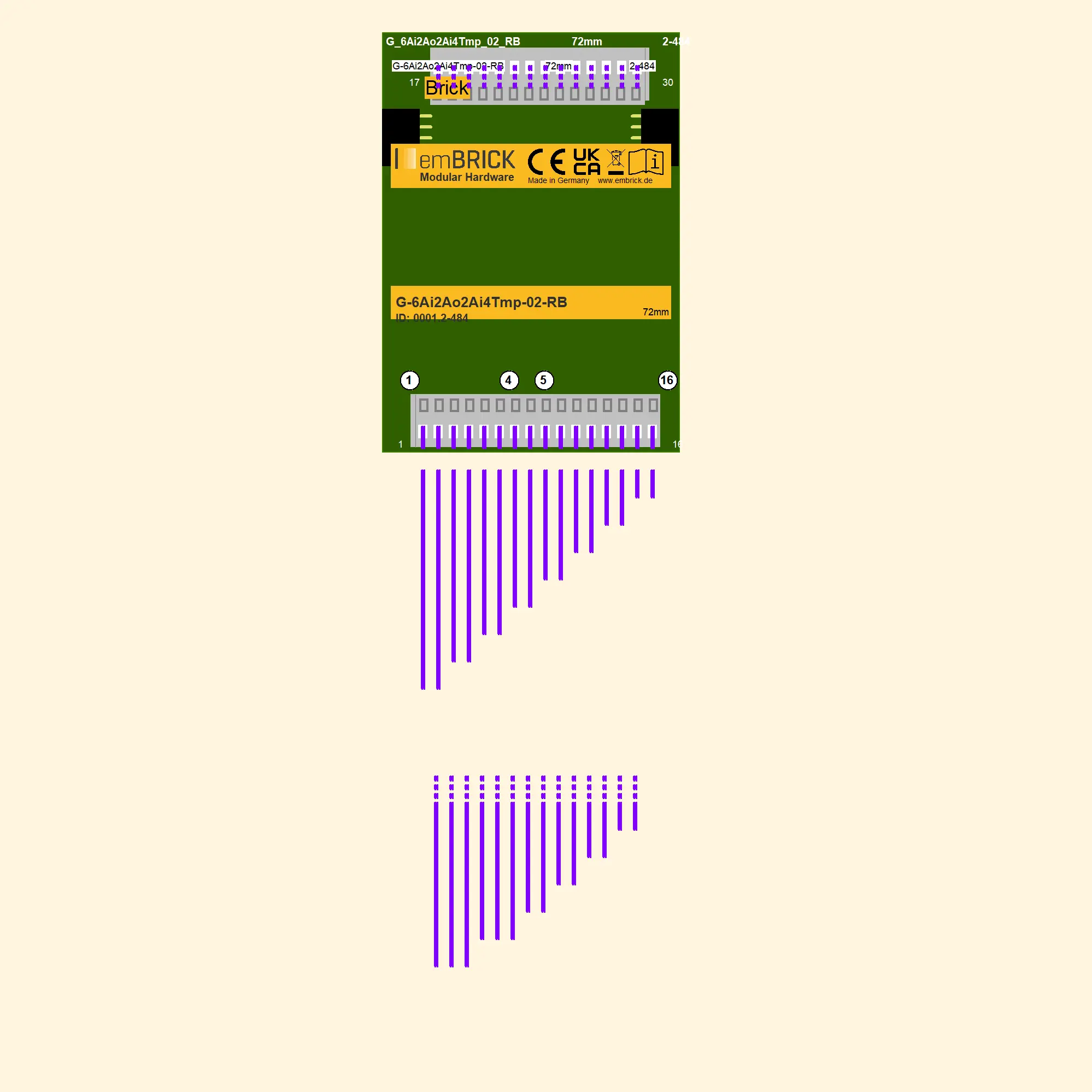

3D-View
More information upon request
