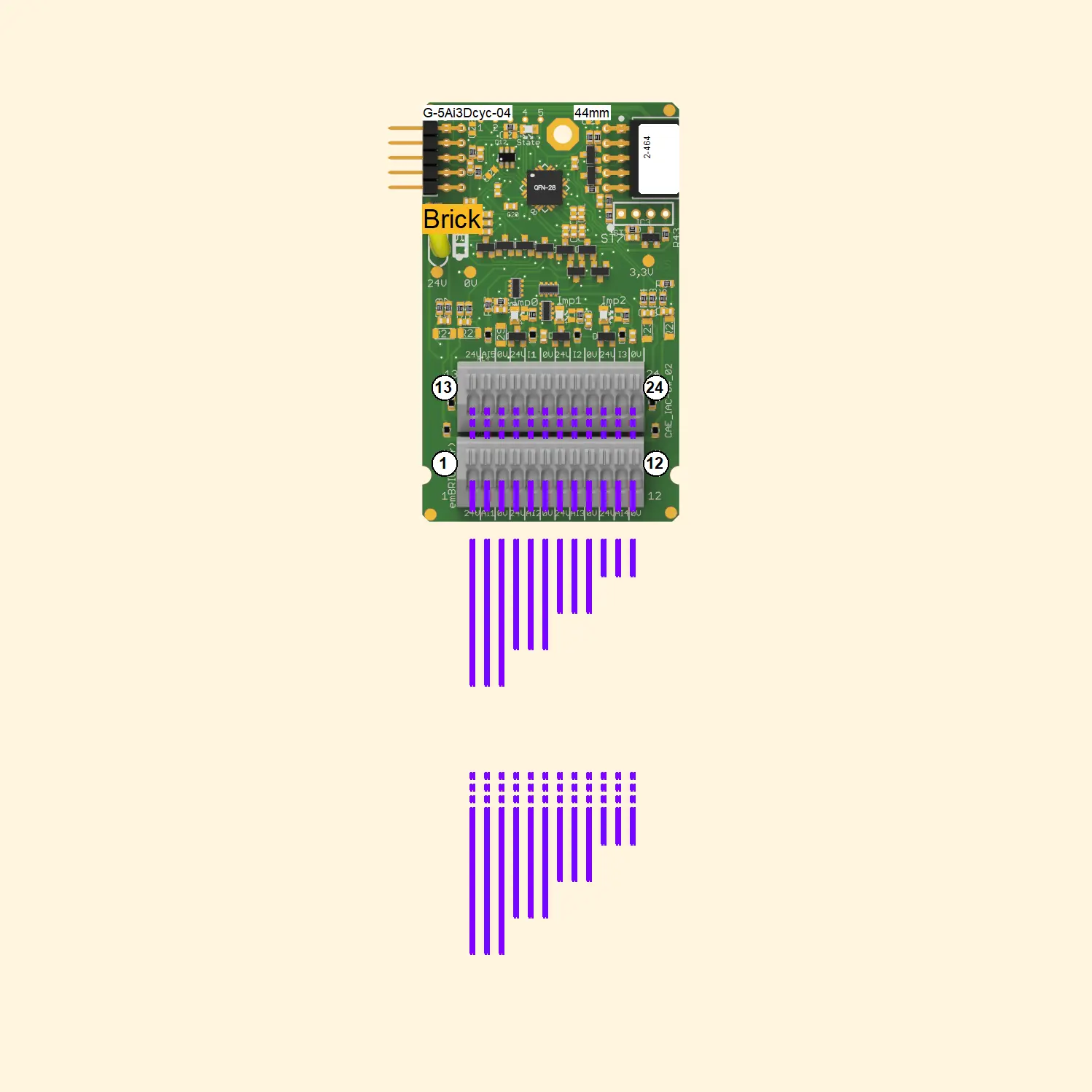

I/O Brick_General-Purpose:
5x Analog-Input, 0/4..20mA, 2/3-Wire
3x DutyCycle-Input, p-switching
CAE_G-5Ai3Dcyc-04
€68,00 excl. VAT, excl. shipping
| Quantity | Discount | Price |
|---|---|---|
| 1 - 4 | — | €68,00 |
| 5 - 9 | 11 % | €60,52 |
| 10 - 49 | 17 % | €56,44 |
| 50 - 99 | 23 % | €52,36 |
| 100 - 249 | 32 % | €46,24 |
| 250 - 499 | 35 % | €44,20 |
| 500+ | 39 % | €41,48 |
Beschreibung
ID: 2-464
Order No.: CAE_G-5Ai3Dcyc-04 (-p)
Terminal: push-in (for ≤ 0.5mm²)
Size: 4 eU (44mm x 72mm)
BBFCP: 1-1-1
Weight: 30g
This module includes 5 current (0/4..20mA) inputs and 3 p-switching duty cycle inputs.
Different analog acquisition modes are available such as: direct, minimum, maximum, average.
The pulse inputs always measure the high
Technical specifications
Features:
| Category | Feature | Quant. | Details |
|---|---|---|---|
| Analog input | 5 | 0/4 … 20mA, 2/3-wire | |
| Duty Cycle Inputs | 3 | High Time up to 500Hz |
Downloads
Documents:
3D-View
More information upon request
