I/O Brick_Process-Control:
2x Relay-Output, NO, potential free
4x Relay-Output, CO, potential free
CAE_G-2RelNo4RelCo-01
€68,00 excl. VAT, excl. shipping
| Quantity | Discount | Price |
|---|---|---|
| 1 - 4 | — | €68,00 |
| 5 - 9 | 11 % | €60,52 |
| 10 - 49 | 17 % | €56,44 |
| 50 - 99 | 23 % | €52,36 |
| 100 - 249 | 32 % | €46,24 |
| 250 - 499 | 35 % | €44,20 |
| 500+ | 39 % | €41,48 |
Beschreibung
ID: 2-301
Order No.: CAE_G-2RelNo4RelCo-01
Terminal: push-in (for < 1.5mm²)
Size: 6 eU (66mm x 72mm)
BBFCP: 1-1-1
Weight: 60g

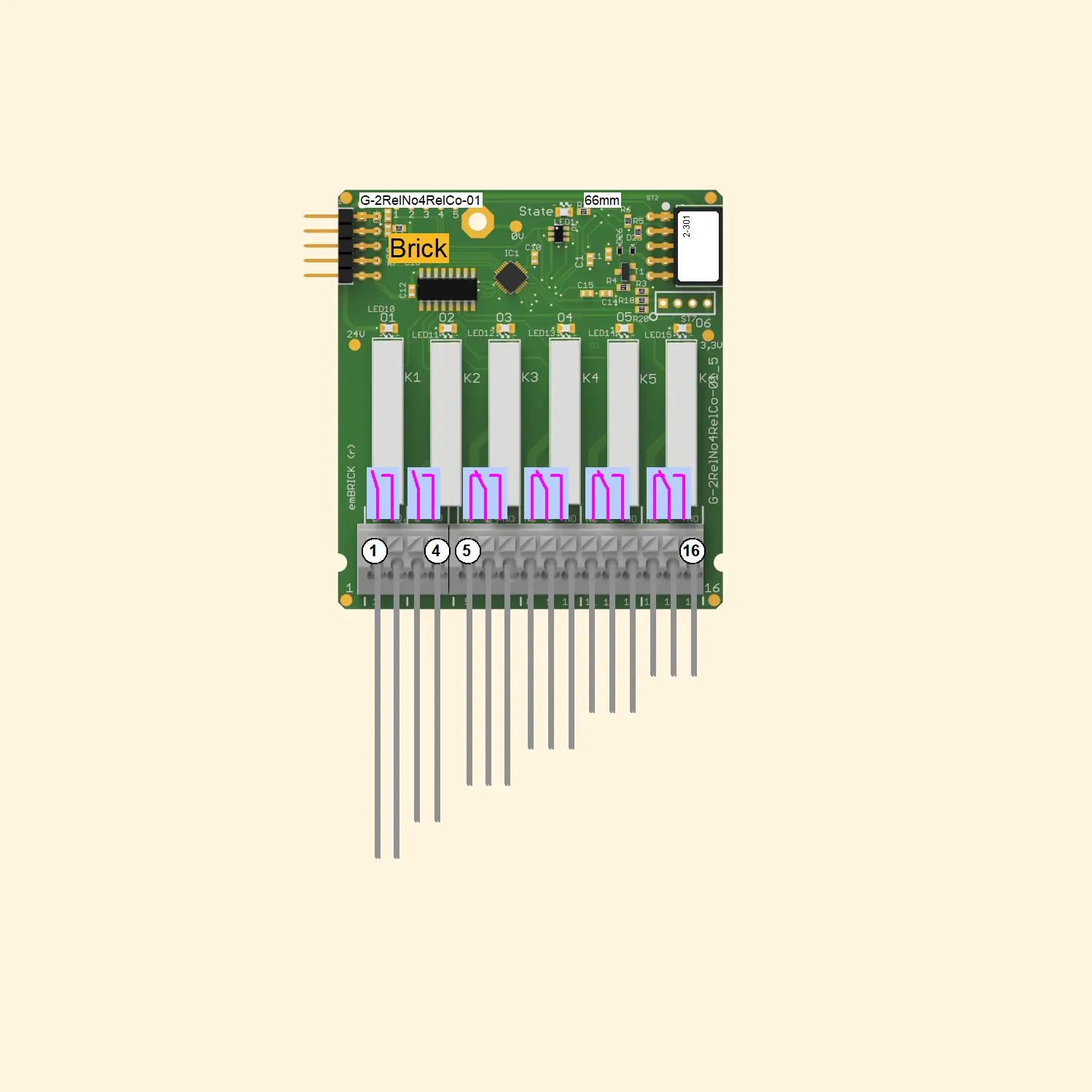

This Relay module includes six isolated Relays. Each can switch a current of max. 4A. The first two are closing contacts. The other four are changeover contacts. The state of each relay is visualized by an LED.
Technical specifications
Features:
| Category | Feature | Quant. | Details |
|---|---|---|---|
| Output | Relay output, CO | 4 | 250V, 4A |
| Output | Relay output, NO | 2 | 250V, 4A |
Downloads
Documents:
3D-View
