I/O Brick_Building-Automation:
8x Temperature, KTY, 2-wire, -5..45°C
CAE_B-8Temp-02
€82,00 excl. VAT, excl. shipping
| Quantity | Discount | Price |
|---|---|---|
| 1 - 4 | — | €82,00 |
| 5 - 9 | 11 % | €72,98 |
| 10 - 49 | 17 % | €68,06 |
| 50 - 99 | 23 % | €63,14 |
| 100 - 249 | 32 % | €55,76 |
| 250 - 499 | 35 % | €53,30 |
| 500+ | 39 % | €50,02 |
Beschreibung
ID: 4-402
Order No.: CAE_B-8Temp-02 (-p)
Terminal: push-in (≤ 0.5mm²)
Size: 4 eU (44mm x 72mm)
BBFCP: 1-1-1
Weight: 30g

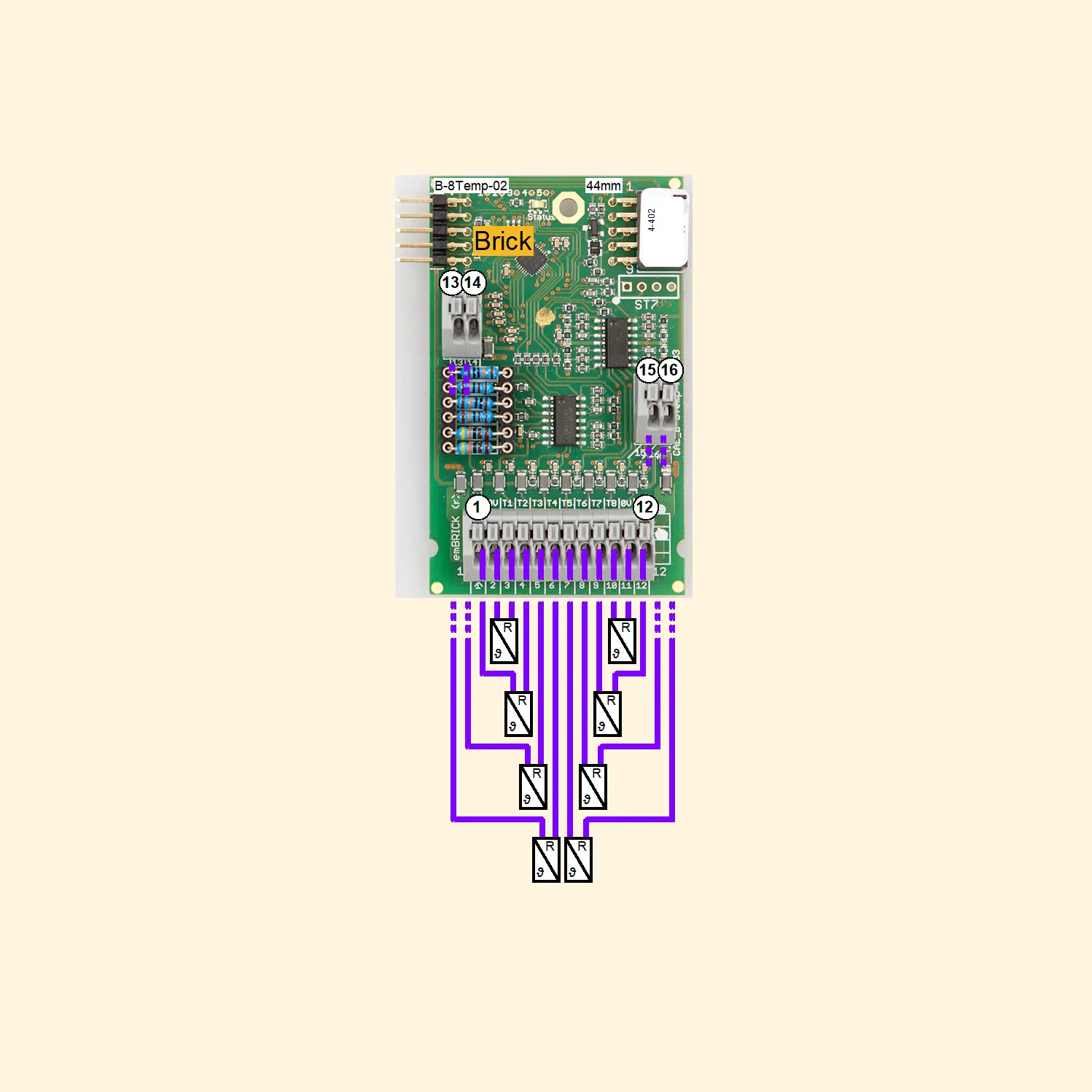

This module includes eight inputs for a temperature sensor with different ranges.
It is typically used with a KTY with 2kOhm at 25°C. The module is equipped with enough clamps for the second connector of the sensor.
Technical specifications
Features:
| Category | Feature | Quant. | Details |
|---|---|---|---|
| In-/Output | Temperature | 8 | Temperature input, KTY81-2k, -5…45°C |
Downloads
Documents:
3D-View
More information upon request
