I/O Brick_Building-Automation:
6x Motion detection, 5V, 2/3-wire
2x LDR, LDR07, 2-wire
CAE_B-6Moti2LDR-01
€55,00 excl. VAT, excl. shipping
| Quantity | Discount | Price |
|---|---|---|
| 1 - 4 | — | €55,00 |
| 5 - 9 | 11 % | €48,95 |
| 10 - 49 | 17 % | €45,65 |
| 50 - 99 | 23 % | €42,35 |
| 100 - 249 | 32 % | €37,40 |
| 250 - 499 | 35 % | €35,75 |
| 500+ | 39 % | €33,55 |
Beschreibung
ID: 4-411
Order No.: CAE_B-6Moti2LDR-01 (-p)
Terminal: push-in (≤ 0.5mm²)
Size: 4 eU (44mm x 72mm)
BBFCP: 1-1-1
Weight: 30g

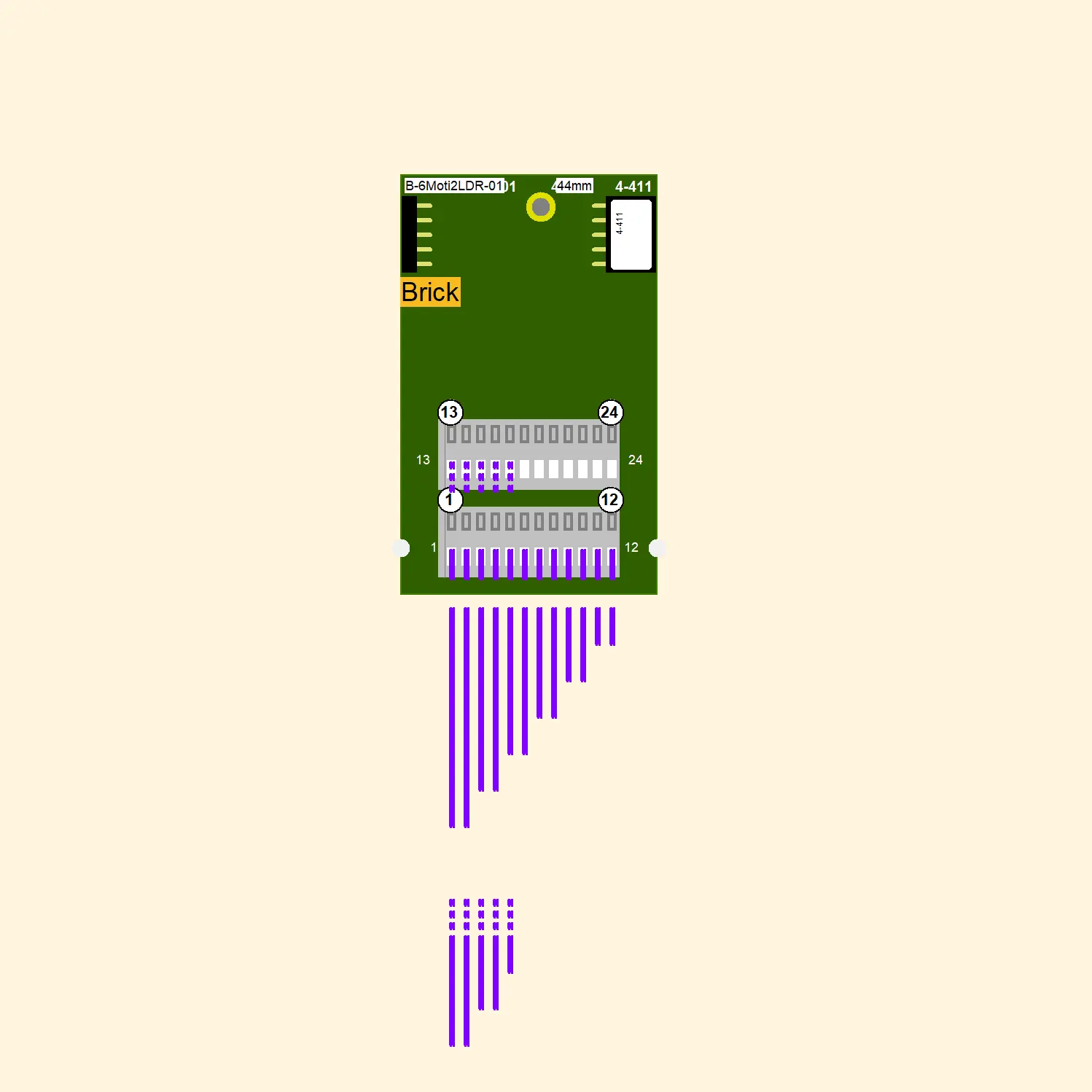

The module includes six voltage inputs and two inputs for a LDR sensor.
For each input/sensor double terminals (ground, input) are available. An additional connected terminal field can by used for power supply distribution to the sensors. Therefore a direct connection of the sensors without separate clamps is available.
Technical specifications
Features:
| Category | Feature | Quant. | Details |
|---|---|---|---|
| In-/Output | LDR (Light Dependent Resistor) | 2 | pH valie input, single-rod measuring cell |
| In-/Output | Motion detection | 6 | 0 … 5V, 2/3-wire |
Downloads
Documents:
3D-View
More information upon request
